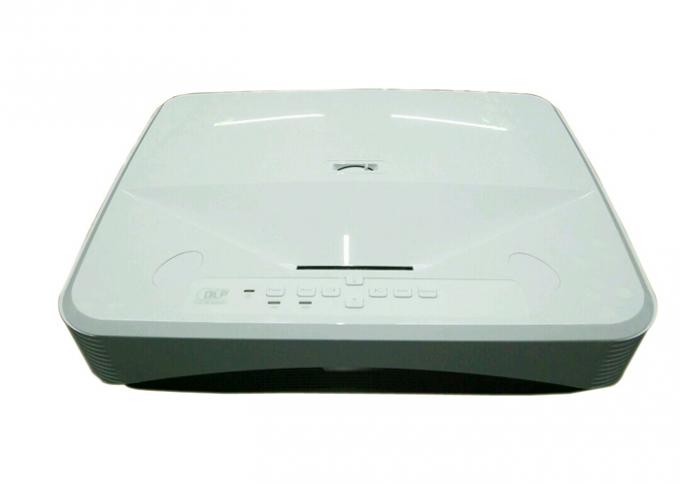

FHD Ultra Short Throw Laser Projector Use In Conferences Room For Business
PRDUCT FEATURES:
1. Professional Ultra Short Throw Feature:
Ultra short throw lens empowers to project an image up to 130°(diagonally) within limited distance of only 0.54M. Audience can still enjoy a large image without shadow even in limited space.
2. The Global Latest 130 Inch Ultra Wide Screen Projector
A better visual effect, replace traditional using two projectors, double-picture coordination problems such as color, effect correction, etc. Cost are lower, installation is more convenient and save more time.
3. Laser Light Source, Better Color
Compare with ordinary light source projector, laser projector has a wider range of colors, images show more real.
4. Fast Turn On & Off
The maximum brightness projection time only needs 3 seconds after turn on, no need warm-up time, ordinary projector bulb usually take 30 seconds long time.
4.1) Only needs 3 seconds to highest brightness after turning on;
4.2) No need to wait the machine to warm-up;
4.3) Only need 13 seconds to display projection image.
5. Resolution Up to 1080P
1080P standard resolution, compare with traditional education projector, TP-410S has higher resolution completely compatible with the current computer and laptop, bring more high quality visual effects.
| Detail Specification |
| Projection System |
DLP |
| Native Resolution Chipset |
0.65" S600 DC2, 1280x800 |
| Brightness(Marketing)) |
Mkt.: 3500 ANSI lumens
Typ.: 3150 ANSI lumens |
| Contrast Ratio(Typical) |
12000:1 |
| Aspect Ratio |
Native 16:10 |
| Throw Ratio |
0.24 |
| Image Size (Diagonal) |
80" ~150" |
| Zoom Ratio |
fixed |
| Light Source Type |
LD module |
| Life (Normal/Economic) |
20000Hrs ---TBD |
| Keystone Adjustment |
2D, Vertical & Horizontal ± 30 degrees
Auto Vertical |
| Lens Shift |
No |
| Projection Offset |
130%+/-5% |
| Resolution Support |
VGA(640 x 480) to WUXGA(1920 x 1200) |
| HDTV Compatibility |
480i, 480p, 576i, 567p, 720p, 1080i, 1080p |
| Video Compatibility |
NTSC, PAL, SECAM, SDTV
(480i/576i), EDTV (480p/576p,
HDTV (720p, 1080i/p 60Hz) |
| Horizontal Frequency |
15K~102KHz |
| Vertical Scan Rate |
23~120Hz |
| Focus Range |
80"~150" |
| Color Wheel Segment |
RYGB |
| Color Wheel Speed |
2X |
| Color Gamut |
TBD (Refer to "Picture Mode") |
| ANSI Uniformity (Min.) |
-50% |
| JBMA Uniformity (Min) |
0.7 |
| Defocus |
2 |
| Flare |
3 |
| Focus unbalance |
No define |
| TV Distortion |
<0.5% |
| Interface |
| Computer in (D-sub 15pin) |
x1 |
| Monitor out (D-sub 15pin) |
x1 |
| HDMI/ MHL |
x 4 ( with MHL x2) |
| DVI-D |
No |
| Composite Video in (RCA) |
x 1 |
| S-Video in (Mini DIN 4pin) |
x 1 |
| Component Video in (RCAX3) |
x 1 |
| Audio in (Mini Jack) |
x 1 |
| Audio L/R in (RCAx2) |
x 1 |
| Audio out (OPTICAL) |
x 1 |
| Audio out (Mini Jack) |
x 1 |
| Microphone in (Mini Jack) |
No |
| Speaker |
10W x 2 |
| LAN (RJ45) |
No |
| RS232 (DB-9pin) |
x 1 |
| USB (Type A) |
x1 (5V/1.5A) |
| USB (Type B) |
No |
| USB (Type Mini B) |
x 1 (for service) |
| 3D Vesa |
No |
| DC 12V Trigger (3.5mm Jack) |
x1 (12V/0.2A) |
| Wired Remote (Mini Jack) |
No |
| IR |
x 1 (Front, facing user) |
| Imteractive module |
No |
| Environment |
銆 |
| Dimensions (WxHxD) |
456 x 376 x 132 mm |
| Weight |
<15Kgw (TBD) |
| Power Supply |
AC 100 to 240 V, 50/60 Hz |
| Typical Power Consumption |
TBD (~ 380W) |
| Stand-by Power Consumption |
< 0.5W |
| Network work standby |
N/A |
| Acoustic Noise (Typ./Eco.) |
TBD (30/ 28 dBA) |
| Operating Temperature |
0~40鈩 |
| ID color |
White |
| Accessories (Standard) |
| Carton |
Yes |
| Carry Bag |
No |
| Remote Control w/ Battery |
x 1 |
| Power Cord (by region) |
x 1 (1.8M) |
| User Manual CD |
x 1 (only Chines simplified) |
| Quick Start Guide |
x 1 (only Chines simplified) |
| Warranty Card (by region) |
x 1 |
| VGA(D-sub 15pin) Cable |
No |
| Wall mount |
No |
| Dust filter |
No |
| Lens cover |
No |
| HDMI cable (1.8m) |
x 1 |
| 1. Above price is EXW price |
|
| 2. Payment Terms: TT in advance |
|
| 3. Valid period: 30 days |
|
| 4. All products are proved by CE,FCC. |
|
| 5. Warranty: 6 months for lamp and 2year for projector |
