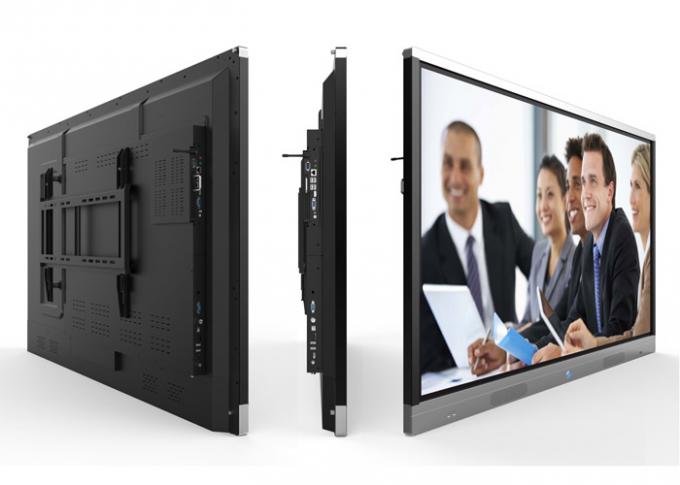

High Brightness Interactive Touch Screen Daul System Windows & Android Low Radiation
Product Details:
| Place of Origin: |
Shenzhen, China |
| Brand Name: |
Tacteasy |
| Certification: |
CE, FCC, RHOS, ISO9001, ISO1400 |
| Model Number: |
TA-55 , TA-65 , TA-75 , TA-86 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
2 pcs |
| Price: |
Negotiation |
| Packaging Details: |
New carton |
| Delivery Time: |
7-12 working days |
| Payment Terms: |
T/T , D/P , L/C |
| Supply Ability: |
3000 pecs per months |
Contact Now
Detailed Product Description
| Product Name: |
Interactive Touch Screen |
Material: |
LG Glass , AG Glass , Aluminum Frame |
| Color: |
Matt Black And Grey |
Usage: |
For School And For Meeting |
| Size: |
55 Inch , 65 Inch , 75 Inch , 86 Inch |
Warranty: |
1 Year |
Large Interactive Touch Screen 55 inch 65 inch 75 inch 86 inch support dual system for school and for meeting
Our team
- 10 years' interactive touch screen and interactive whiteboard factory with multiple sizes.
- Original software engineers and own factory,Strong at OEM.
- Sample ready in 2 days, batch order delivery within 20 days.
- Product-selling American markets, the Middle East region, has the quality to win.
- Our interactive touch screen, exported to Eoupean and American counties, has been very popular among abroad
Product features:
- 10 touch,
- 4K led panel
- anti-strike
- anti-glare glass
- daul system-Windows&Android
- narrow frame less than 2cm.
Product Specification
| TOUCH SIZE |
65inch |
70ich |
75inch |
86inch |
| ACITVE SIZE(mm) |
1428.5 x 803.5 |
1549.44 x 871.56 |
1649.66X927.93 |
1897 X 1068 |
| OUTLINE DIMENSION(l*h*w) |
1489 x 906 x 103 |
1611 x 975 x 112 |
1736 x 1057 x 121 |
1990 x 1203 x 113 |
| PACKING SIZE(l*h*w) |
1620 x 1020 x 220 |
1811 x 1175 x 235 |
1920 x 1350 x 280 |
2150 x 1420 x 330 |
| MOUNTING THINCKNESS(mm) |
100 |
| WALL MOUNTING HOLE DIMENSIONS(mm) |
400 x 420 |
| STAND |
OPTIONAL |
Panel Specification
| PANEL TYPE |
Original LED |
BRIGHTNESS |
≥350 cd/銕 |
| CONTRACT RATIO |
4000:1 |
VIEWING ANGLE |
178° |
| RESOLUTION |
3840 X 2160 P (4K) |
LIFE |
50000 hours |
Touch Screen Specification
| TECHNOLOGY |
Infrared |
POSITIONING ACCURACY |
≤0.2mm |
| INSTALL WAY |
Built in |
EFFECTIVELY IDENTIFY DIMENSIONS |
≥ Ø5mm |
| TOUCH POINT |
10 points |
WRITING MEDIA |
4mm toughened glass/AG glass optional |
| RESPONSE SPEED |
≤5ms |
PC DRIVER |
Free drive |
| INTERFACE WAY |
USB |
LIFE |
≥6000 Million times |
Android System Attributes
| ANDROID CPU |
MST 828 A7 4core |
RAM/STROAGE |
2G/32G |
| SYSTEM VERSION |
5.1 |
SPEAKER |
2 x 10W @ 8Ω |
| INPUT PORT |
VGA×1,HDMI×2 ,TV- USB(3.0)×2 ,RJ45×2, SD card×1,Audio IN×1,RF×1,USB type B×1, YPBPR-IN×1,AV×1,EAR×1,MIC ×1 |
OUTPUT PORT |
RS232×1,SPDIF×1, AV out×1, S-video×1,VGA-out×1 |
| FRONT PORTS |
PC USB x 2, media USB x1, Touch USBx1, HDMI x1 |
| MEDIA SUPPORT |
MPEG1 /MPEG2 /MPEG4 /RM /RMVB /H264 /MOV /MJPEG /DIVX /VC1 /FLV /MP3 /WMA /M4A /AAC /JPG /BMP /PNG |
| SYSTEM LANGUAGES |
English/Espana/Polska/Russian/German/Chinese |
OPS PC Specification(optional)
| CPU |
I3/I5/I7(option) |
CHIPSET |
Inter@H81(option) |
| RAM |
4G(option) |
HARD DISK |
500G HDD(option) |
| DISPLAY |
CPU Integrated graphics HD Graphics |
WIFI |
YES |
| NET(RJ45) |
1 |
USB PORT |
4x USB 2.0, 2x USB 3.0 |
| VGA |
1 |
HDMI PORT |
1 |
| HEADPHONE JACK |
1 |
MICROPHONE INTERFACE |
1 |
| PC SYSTEM |
Windows 10 testing Version |
COMPUTER BOX SIZE |
180Lx195Wx42H/mm |
Power Supply
| INPUT POWER |
110-220V AC 50/60Hz |
| POWER CONSUMPTION |
<180W |
| STANDBY POWER CONSUMPTION |
鈮1W |
| WORKING TEMPERATURE |
0鈩冿綖45鈩 |
Packing Lists
| NAME |
QUANTITY |
| TOUCH PANEL |
1pcs |
| REMOTOR |
1pcs |
| CD |
1pcs |
| WHITEBOARD PEN |
2pcs |
| WALL MOUNT |
1set |
